Fully Automatic Concrete Batching & Mixing Plant (IRD Series)

We offer inline series of drum type batching and mixing plant which is highly appreciated by the industry. Economic design and very cost effective than other batching plants as it has very low operating cost and less connected power hence consumes less electricity.

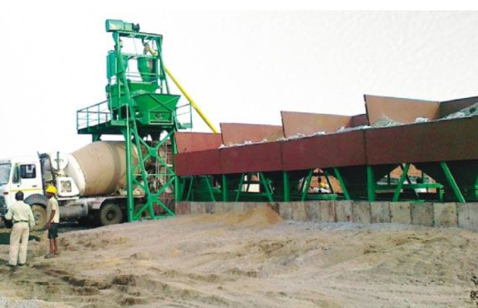

Fully Automatic Concrete Batching & Mixing Plant

Fully Automatic Concrete Batching & Mixing Plant (IRD Series)

Technical Specification :
Series IRD
Operation Automatic
Model/Type Drum Type
Control System PLC


Detailed Data :
MODEL IRD-30 IRD-40
CAPACITY (CUM 30 40
GEO.VOLUME (cum) 2.25 3
RMC OUT PUT /BATCH 0.75 M3 1 M3
% OF FILLING 35% 35%
BATCHES PER HOUR 40 40
DISCHARGE HEIGHT FROM G.L Discharge in TM Discharge in TM
CAPACITY ( 8 HOURS) 240 M3 320 M3
STORAGE BIN FEEDER 3 Nos. 3 Nos.
POWER CONSUMPTION
Drum Motor 15 HP 20 HP
SKIP MOTOR 15 HP 20 HP
SCREW FEEDER MOTOR 15 HP 15 HP
BIN FEEDER MOTOR 10 HP 15 HP
WATER PUMP 3 HP 5 HP
COMPRESSOR MOTOR 3 HP 5 HP
CHEMICAL MOTOR 1 HP 1 HP
VIBRATOR'S 2 x 0.5 HP 2 x 0.5 HP
POWER PACK MOTOR 2 HP 3 HP
NET CONSUMPTION 65 HP 85 HP
POWER SUPPLY 415 x 3 Ø x 50 Hz 415 x 3 Ø x 50 Hz
Recommended D.G. Set 82 KVA 110 KVA

Technical Features :
  1. PLC operated completely automatic control panel.
  2. Drum mixing technology.
  3. Electronic weighing system for better accuracy in design.
  4. Separate weighing system for cement and fly-ash.
  5. Italian screw feeder, to pour cement speedily
  6. Password locking facility
  7. Water and ad-mix pour by weight.
  8. Pneumatically weighing system for cement and fly-ash.
  9. Italian screw feeder to pour cement speedily.
  10. Password locking facility.
  11. Water and ad-mix pour by weight.
  12. Separate Weighting Belt Conveyor.
  13. Pneumatically operated gate for aggregate and sand.
  14. Italian vibrators.
  15. Tabulated print out system for each batch.
  16. No pit required only nominal civil work.
  17. Heat proof control cabin.
  18. Cement silo with vertical screw feeder (optional)
  19. Hydraulic discharge system.(For Pan Mixer)
  20. E-mail or SMS facility (optional)
