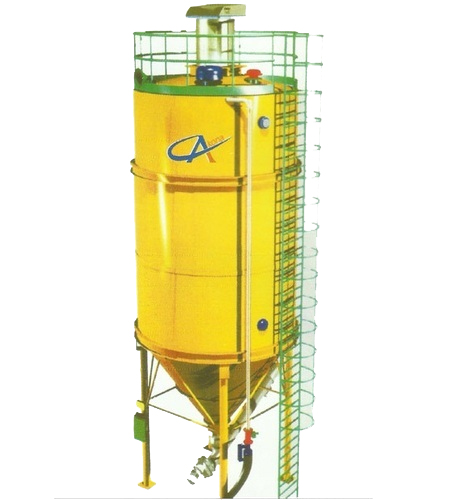

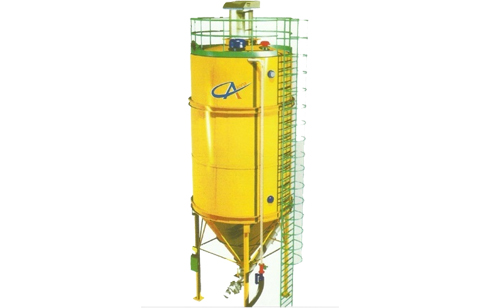

Silo

This Model has been designed with two concept's i.e. Compactivity and productivity (output) :




Silo


S.No. PARTICULARS
1.0 100 Ton Capacity, Cement Storage silo
> F =3400mm
> Height of discharge from G.L. =2000 mm
> Overall Height =12000 mm
> Welded / Bolted = Welded
2.0 Vibrating bin Aerator
2.1 Pressure Safety Relief Valve M.O.C.-steel)
2.2 Level Indicator 115/230/V/AC (upper & lower )
Paddle type Rotating with socket 1+1/2”
2.3 NB-300 Manually Operated Butterfly Valve for silo Discharge
2.4 Other Accessories :-
* 1” Two Way Valve with Coil :1 No.
* Filter Regulator with Gauge :1 No.
* Bracket For FRL :1 No.
* 1” Nipple :3 Nos
* Reducer 1” Male & ½ ” Female :1 No.
* Manifold ½ ” Female & 2 outlet :1 No.
* Male Connector (3175 1421) :4 Nos.
* Equal Tee (3104 1400) :2 Nos
* Male Elbow (3108 1417) :4 Nos.
* Polyutherine Tube L-11000-14, :10 mtr Length
3. Pneumatic feeding system
4. Control Panel
5. Air Compressor(10 H.P.)
6. Special dust collector 21.5 M3 for cement SILO’S (Wam make) (compulsory with Pneumatic feeding system)
