Fully Automatic Concrete Batching & Mixing Plant (BOOM Scraper type RD series)

The RD Series models are designed to meet practical requirement and provide more flexibility for working. Fully automatic concrete batching and mixing plants are available in following two models RD-20 (20M³/Hr.), RD-30 (30M³/Hr.) RD Series has separate digital weight display for all constituents.

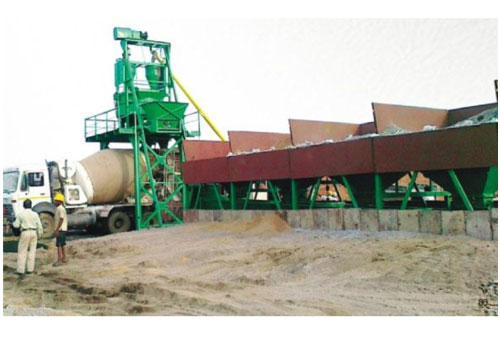

Concrete Batching & Mixing Plant (with belt conveyor).

Fully automatic concrete batching & mixing plant (Reversible Drum Type). Fully automatic concrete batching & mixing plant (Reversible Drum Type). Material Storage Three + One Bin Feeder with Belt Conveyor. Separate weighing system for cement, aggregate & sand. Screw feeder (Conveyor) to pour cement speedily. Water by weight. Pneumatically operated gate for aggregate & sand. Vibrators. High quality gearbox and heavy duty motors. Control Panel. Single chassis design to shift easily. Tabulated print out system for each batch.

Model	RD-20	RD-30
CAPACITY (CUM / Hr)	20	30
GEO. VOLUME (Cum)	1.75	2.25
RMC OUTPUT /BATCH	0.5 M3	0.75 M3
% OF FILLING	35%	35%
BATCHES PER HOUR	40	40
DISCHARGE HEIGHT FROM G.L	Pump Discharge	Discharge in TM
CAPACITY ( 8 HOURS)	160 M3	240 M3
BOOM SCRAPPER	In Built	In Built

Model	RD-20	RD-30
DRUM MOTOR	10 HP	15 HP
SKIP MOTOR	10 HP	15 HP
SCREW FEEDER MOTOR	15 HP	15 HP
WATER PUMP	5 HP	5 HP
COMPRESSOR MOTOR	3 HP	3 HP
SCRAPPER MOTOR	10 HP	10 HP
CHEMICAL MOTOR	1 HP	1 HP
VIBRATORS	2 x 1 HP	2 x 1 HP
NET CONSUMPTION	56 HP	66 HP
Power Supply	415 x 30 x 50 Hz	415 x 30 x 50 Hz
Recommended RD & DG set	75 KVA	82 KVA
