Fully Automatic Concrete Batching & Twin Shaft Mixing Plant (Akona
Series)
AKONA-Series is revolutionary designed model, in which we have used the design concept of very big capacity plants . The belt conveying system saves the time, reduces the maintenance and increases the output. Well known Twin shaft mixing technology provide optimum output along with the belt conveying system.
 |
 |
|
|

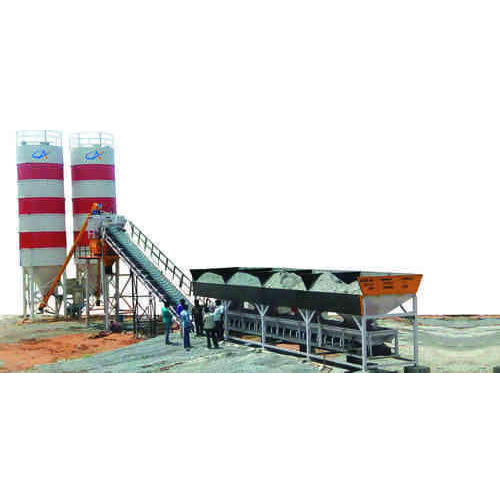

Complete Batching Plant |
|
|
|
|
Technical Specification :
| Capacity |
120m3/hr and above |
| Control System |
PLC |
| Operation |
Automatic |
| Discharge System |
Hydraulic |
Detailed Data :
| MODEL |
AKONA-90 |
AKONA-120 |
| PLANT CAPACITY / HOUR |
|
|
| ASSURED COMPACTED CONCRETE OUTPUT
(MAX.) |
90 CUM. |
90 CUM. |
| UNCOMPACTED MATERIAL INPUT (MAX.)
|
135 CUM |
135 CUM. |
| MIXER TECHNOLOGY” |
TWIN-SHAFT COMPULSARY |
TWIN-SHAFT COMPULSARY |
|
CONCRETE MIXER |
CONCRETE MIXER |
| MIXER MODEL MOTOR POWER”
|
MSO 2250/1500/MAO 2250/1 500
|
DKX 2.50 / 2 X 37 MAO |
|
(2 X 30KW) |
3750/2500 (2 X 37 KW) |
| MIXING BLADE'S |
14 |
16 |
| CYCLE'S / HOUR |
60 |
48 |
| ELECTRONIC WEIGHING RANGE WITH
LOAD CELL |
|
|
| AGGREGATE SCALE |
4500 Kgs |
6000 Kgs |
| CEMENT SCALE |
900 Kgs |
1200 Kgs |
| WATER SCALE |
400 Kgs |
500 Kgs |
| AD-MIX SCALE |
10 Kgs |
15 Kgs |
| WATER SUPPLY PUMP |
|
|
| TYPE |
MONOBLOCK |
MONOBLOCK |
|
SELF-SUCTION |
SELF-SUCTION |
| BORE |
80 |
80 |
| MOTOR DRIVING POWER |
7.5 Kw |
7.5 Kw |
| AGGREGATE STORAGE FOUR BIN FEEDER
|
100 TONS (25 T X 4) |
120 TONS (30 T X 4) |
| MAX. AGGREGATE SIZE |
64mm |
64mm |
| NO. OF GATES/GATES PER BIN |
8/2 |
8/2 |
| WEIGHING CONVEYOR |
YES |
YES |
| LENGTH |
12 MTR |
12 MTR |
| BELT-WIDTH |
1200mm |
1200mm |
| MOTOR DRIVING POWER X RPM |
15 H.P. X 33 |
15 H.P. X 33 |
| INCLINED CONVEYOUR / BUCKETT
LOADING |
YES/YES |
YES/YES |
| BELT-LENGTH |
55 MTR. |
55 MTR. |
| BELT-WIDTH |
700mm |
700mm |
| MOTOR DRIVING POWER X RPM |
15 H.P. X 100 |
15 H.P. X 100 |
| BATCH CARRIER OVER MIXER |
YES |
YES |
| AIR COMPRESSOR |
|
|
| TYPE |
SELF SUCTION |
SELF SUCTION |
| MOTOR DRIVING POWER |
11 Kw |
11 Kw |
| STORAGE TANK |
300 ltr. |
360 ltr. |
| OPERATION SYSTEM |
FULLY AUTOMATIC COMPUTERIZED PLC
BASED CONTROL SYSTEM |
|
| MODEL |
SRK 90 |
SRK 120 |
| INDICATOR |
TFT COLOURMONITOR WITH DUAL
PROCESSOR |
|
| PLC |
SIEMAN'S / DELTA / ALLEN BRADLEY
|
|
| POWER SUPPLY |
415 X 30 50 Hz |
415 X 30 50 Hz |
Technical Features :
- PLC operated completely automatic control panel.
- Blade mixing technology with planetary gear-boxes.
- Electronic weighing system for better accuracy in design –
mix.
- Separate weighing system for cement and fly-ash.
- Italian screw feeder, to pour cement speedily
- Password locking facility
- Water and ad-mix pour by weight.
- Pneumatically operated gate for aggregate & sand.
- Italian vibrators.
- Tabulated print out system for each batch.
- No pit required only nominal civil work.
- Heat proof control cabin.
- Cement silo with vertical screw feeder (optional)
|
