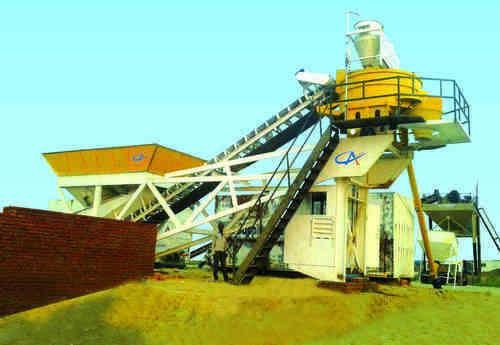

Fully Automatic Concrete Batching & Mixing Plant (AHP Series)
AHP Series has been designed for single chassis structure, it is compact and fully automatic plant. This machine has four separate weighing system simultaneously. This model has been preferred due to ease of installation and easily shifting of machine from one site to another.
|
|
Fully Automatic Concrete Batching & Mixing
Plant (AHP Series) |
|
Technical Specification :
| Operation |
Automatic |
| Mixer Type |
Pan |
| Compartments |
2/4 ; 3/4 |
| Model/Type |
AHP-20, AHP30 |
Detailed Data :
| ITEM/
PARTICULAR |
SPECIFICATION |
| AHP-20 |
| MIXER UNIT |
PAN MIXER |
| GEOMETRICAL VOLUME |
1 M3 |
| RMC OUTPUT/BATCH |
0.35 M3 |
| FILLING % |
35% |
| BATCH / HOUR |
60 |
| DISCHARGE HEIGHT |
DISCHARGE IN PUMP |
| CAPACITY (8 HOURS) |
160 |
| NO. OF CYCLES / HR |
60 |
| NUMBER OF COMPARTMENT |
2 NOS. 2/4 |
| Power Consumption |
| MIXER MOTOR |
25 HP |
| SLINGER CONVEYOR |
5 HP |
| GATHERING CONVEYOR |
7.5 HP |
| WATER PUMP |
2 HP |
| COMPRESSOR |
2 HP |
| CHEMICAL MOTOR |
1 HP |
| POWER PACK |
2 HP |
| VIBRATOR MOTOR |
0.5 HP |
| CEMENT SCREW CONVEYOR |
10 HP |
| Total HP |
55 HP |
| ITEM/
PARTICULAR |
SPECIFICATION |
| AHP-30 |
| CAPACITY (Cum/Hr.) |
30 M3 / HOUR |
| GEOMETRICAL VOLUME (Cum/hr. |
1.70 M3 |
| RMC OUT PUT /BATCH |
0.5 M3 |
| FILLING PERCENTAGE |
40% |
| BATCH / HOUR |
60 |
| DISCHARGE HEIGHT FROM G.L. |
Discharge in PUMP |
| CAPACITY (8 Hours ) |
240 M3 |
| Storage Bin Feeder |
2/4 Nos. |
| Cement Screw Conveyor Wam make |
01 No. |
| Power Consumption |
| DRUM MOTOR (PAN DRUM) |
30 HP |
| Belt Conveyor Motor |
10 HP |
| Cement SCREW FEEDER MOTOR |
15 HP |
| WATER PUMP |
3 HP |
| COMPRESSOR MOTOR |
3 HP |
| CHEMICAL MOTOR |
1 HP |
| VIBRATOR’S |
2 x 1 HP |
| NET CONSUMPTION |
64HP |
| Power Supply |
415 x 3 Ø 50Hz |
Technical Features :
- Fully automatic concrete batching & mixing plant (PAN Drum
Type).
- Separate weighing system for cement, aggregate & sand.
- Italian screw feeder (Conveyor) to pour cement speedily.
- Water by weight.
- Pneumatically operated gate for aggregate & sand.
- Italian vibrators.
- High quality gearbox and heavy duty motors.
- Control Panel.
- Single chassis design to shift easily.
- Tabulated print out system for each batch.
|

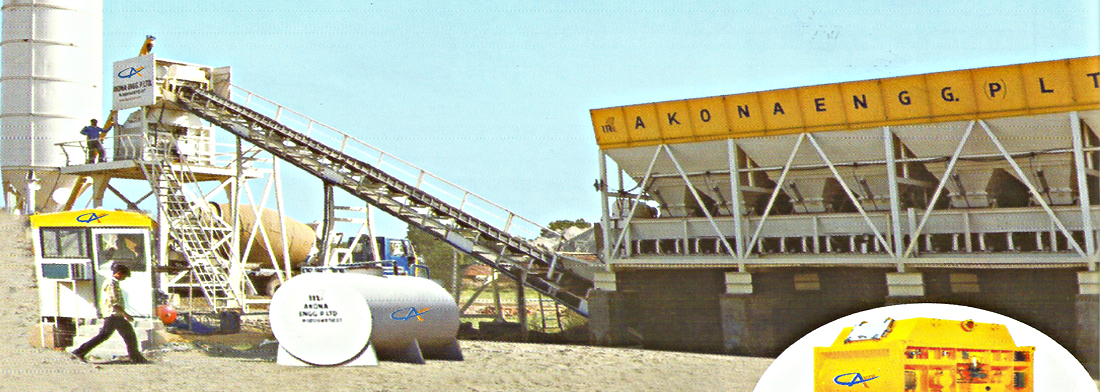

Batching Plant
Technical Features :
- Fully automatic concrete batching & mixing plant (PAN Drum
Type).
- Separate weighing system for cement, aggregate & sand.
- Italian screw feeder (Conveyor) to pour cement speedily.
- Water by weight.
- Pneumatically operated gate for aggregate & sand.
- Italian vibrators.
- High quality gearbox and heavy duty motors.
- Control Panel.
- Single chassis design to shift easily.
- Tabulated print out system for each batch.
|
