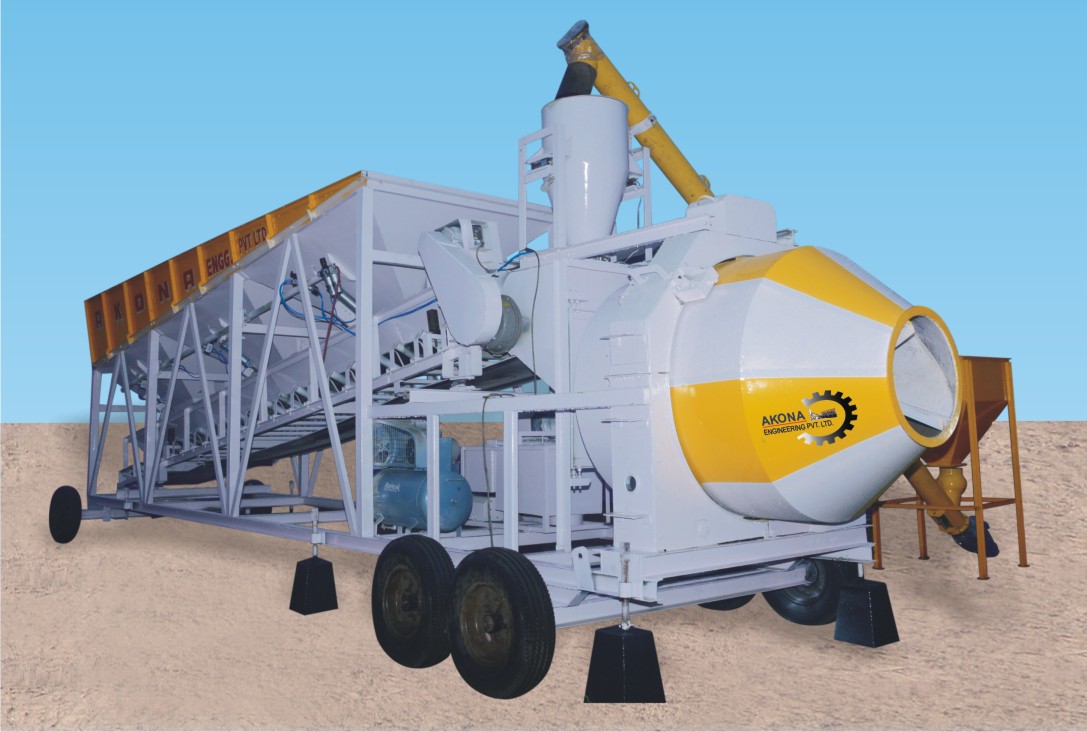

Fully Automatic Concrete Batching & Mixing Plant (AH Series)

AH Series has been designed for single chassis structure, it is compact and fully automatic plant. This machine has four separate weighing system simultaneously. This model has been preferred due to ease of installation and easily shifting of machine from one site to another.

Concrete Batching & Mixing Plant (with belt conveyor).

Fully automatic concrete batching & mixing plant (Reversible Drum Type). Material Storage Three + One Bin Feeder with Belt Conveyor. Separate weighing system for cement, aggregate & sand. Screw feeder (Conveyor) to pour cement speedily. Water by weight. Pneumatically operated gate for aggregate & sand. Vibrators. High quality gearbox and heavy duty motors. Control Panel. Single chassis design to shift easily. Tabulated print out system for each batch.

Capacity	20 & 30 cum/hr.
Model/Type	AH-20 / AH-30
Operation	Automatic
Condition	New

MODEL	AH-15	AH-20
MIXER UNIT	DRUM MIXER	DRUM MIXER
GEOMETRICAL VOLUME	1.4 M3	1.75 M3
RMC OUT PUT /BATCH	0.4 M3	0.5 M3
FILLING PERCENTAGE	35 %	35%
BATCHES/HOUR	40	40
DISCHARGE HEIGHT	Discharge in Pump	Discharge in Pump
CAPACITY (8 HOUR)	120 M3	160 M3
NUMBER OF CYCLES/HR	40	40
CEMENT BATCHING	By weight	By weight
AGGREGATE BATCHING	By weight	By weight
WATER BATCHING	By weight	By weight
AD-MIX BATCHING	By weight	By weight
NUMBER OF COMPARTMENT	03 Nos. - 2/4	04 Nos. - 3/4
SIZE	2/4	3/4

MODEL	AH-15	AH-20
MIXER MOTOR	10 HP	15 HP
BELT CONVEYOR MOTOR	7.5 HP	10 HP
CEMENT SCREW FEEDER	10 HP	10 HP
WATER PUMP	03 HP	03 HP
COMPRESSOR MOTOR	03 HP	03 HP
VIBRATOR MOTOR	0.5 HP	0.5 HP
Chemical Motor	1.0 HP	1.0 HP
POWER SUPPLY	415 X 50 Hz	415 X 50 Hz
NET CONSUMPTION	35 HP	42.5 HP
RECOMMENDED DG SET	45 KVA	62 KVA
