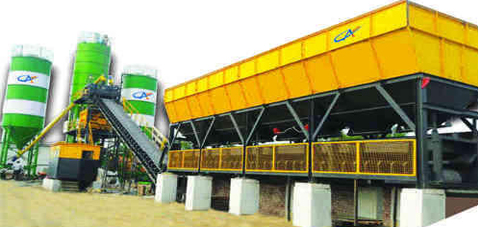

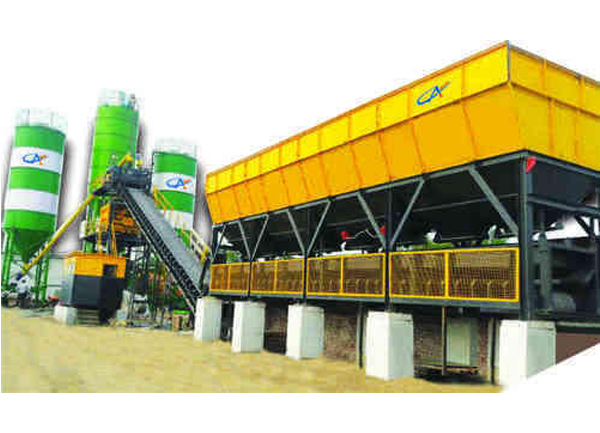

Concrete Batching & Twin-Shaft Mixing Plant (ATS Series)

AKONA-Series is revolutionary designed model, in which we have used the design concept of very big capacity plants (like-120m3/Hr above). The belt conveying system saves the time, reduces the maintenance and increases the output. This plant is suitable for RMC setup. Heavy concrete work order woket.

Concrete Batching & Twin-Shaft Mixing Plant (ATS Series)

Ask for Price

Technical Specification :

Capacity	120 cum
Control System	PLC
Power(W)	296 HP
Model/Type	ATS-120

Product Code :- 21

Detailed Data :

MODEL PLANT CAPACITY /HOUR	ATS-60	ATS-90	ATS -120
ASSURED COMPACTED CONCRETE	60 CUM	90 CUM	120 CUM
OUTPUT(MAX.) UNCOMPACTED MATERIAL INPUT(MAX.)	90 CUM	135 CUM	180 CUM
"MIXER TECHNOLOGY	''TWIN-SHAFT COMPULSORY CONCRETE MIXER"	"TWIN-SHAFT COMPULSORY CONCRETE MIXER"	"TWIN-SHAFT COMPULSORY CONCRETE MIXER"
"MIXER MODEL"	"MSO 1500/1000/ DKX 1.00(2 X 22KW)"	MSO 2250/1500 MAO 2250/1500 (2x30 KW)	DKX 2.50/2x37 MAO 3750/2500 (2x37 KW)
MIXING BLADE'S	12	14	16
CYCLE'S / HOUR	60	60	48
ELECTRONIC WEIGHING RANGE WITH LOAD CELL
AGGREGATE SCALE	3000 Kgs	4500 Kgs	6000 Kgs
CEMENT SCALE	600 Kgs	900 Kgs	1200 Kgs
WATER SCALE	300 Kgs	400 Kgs	500 Kgs
AD-MIX SCALE	5 Kgs	10 Kgs	15 Kgs
WATER SUPPLY PUMP
TYPE	"MONOBLOCK SELFSUCTION"	"MONOBLOCK SELFSUCTION"	"MONOBLOCK SELFSUCTION"
BORE	65	80	80
MOTOR DRIVING POWER	5 Kw	7.5 Kw	7.5 Kw
AGGREGATE STORAGE FOUR BIN FEEDER	"60 TONS (15 Tx4)"	"100 TONS (25 Tx4)"	"120 TONS (30 Tx4)"
MAX. AGGREGATE SIZE	64mm	64mm	64mm
NO. OF GATES/GATES PER BIN	4	8/2	12/3
WEIGHING CONVEYOR	YES	YES	YES
LENGTH	11 MTR	12 MTR	12 MTR
BELT-WIDTH	1000mm	1200mm	1200mm
GEARE MOTOR DRIVING POWER x RPM	15 H.Px33	15 H.P x 33	15 H.P x 33
INCLINED CONVEYOR BUCKET! LOADING	YES/YES	YES/YES	YES/YES
BELTL-ENGTHB	55 MTR	55 MTR	55 MTR
ELT-WIDTH	700mm	700mm	700mm
MOTOR DRIVING POWER x RPM	15 H.P x 100	15 H.P x 100	15 H.P x 100
BATCH CARRIER OVER MIXER	YES	YES	YES
AIR COMPRESSOR
TYPE	SELF SUCTION	SELF SUCTION	SELF SUCTION
MOTOR DRIVING POWER	7.5 Kw	11 Kw	11 Kw
STORAGE TANK	220 It	300 Itr	360 ItR
OPERATION SYSTEM	FULLY AUTOMATIC COMPUTERIZED PLC BASED CONTROL SYSTEM
PANEL MODEL	SRK 60	SRK 90	SRK 120
INDICATOR	TFT COLOUR MONITOR WITH DUAL PROCESSOR
PLC	SIEMN'S /DELTA/ ALLEN BRADLEY
POWER SUPPLY	415X30 50 Hz	415 X 30 50 Hz	415 X 30 50 Hz
